Centimeter-level distributed temperature sensing (fiber optic) system(LRC-DTS)

Short Description:





Details

Product Overview

In traditional Raman optical time-domain demodulation, the resolution in terms of meter-scale spatial sensing has already reached its limit. The sampling rate, signal bandwidth, and narrow pulse accuracy cannot be further improved or surpassed. Bridging technology combines the technology of scattering optical pulse coding with NPU (Neural Processing Unit) hardware decoupling, and has developed a new generation of centimeter-scale distributed fiber optic temperature sensing system. This system has significant implications in the field of fiber optic sensing. The company has independently developed the BLY-FT100 model, which is a complete set of equipment that can be connected to a maximum of 50 km of optical cable. It supports up to 16 channels and achieves a positioning accuracy of ±0.05 meters (5 centimeters). The minimum temperature sensing unit is ±0.05 meters, and the temperature accuracy is ±0.05°C (measured). The measurement time is within 3 seconds. With a 50 km optical cable connected, the main unit of the equipment is equivalent to a real-time load of one million distributed temperature sensors with positioning capabilities. Each fiber optic sensor at 0.05 meters (5 centimeters) has its own position coordinates. It can obtain real-time temperature values of all sensors online and also obtain the position of each sensor. This system can be widely used in applications such as leak location and early warning in oil pipelines, heat location and early warning in power cables, safety location and early warning in coal mines, fire location and early warning in firefighting, and safety location and early warning in new energy, and so on.

Product Details:

Brillouine Technology has developed an advanced centimeter-level distributed fiber optic temperature sensing system that combines the advantages of Brillouin equipment and Raman DTS (Distributed Temperature Sensing) technology. By utilizing optical frequency domain laser coding with an NPU (Neural Processing Unit) neural network demodulation scheme, the overall performance of the system has been significantly enhanced to meet various industrial requirements.

Key Specifications:

Temperature Accuracy: The temperature measurement accuracy has been improved to ±0.05°C while maintaining the same measurement time.

Positioning Accuracy: The positioning accuracy has been enhanced to ±0.05 meters (5 centimeters).

Spatial Temperature Resolution: The system achieves a spatial temperature resolution of ±0.05 meters (5 centimeters).

Measurement Channels: The system supports up to 16 measurement channels.

Fiber Optic Length: The system can be connected to optical cables with a total length of up to 50 km.

Equivalent Number of Temperature Sensors: With a single device, the system can handle the equivalent of over 1 million distributed temperature sensors.

Extended Fiber Length: By implementing frequency division multiplexing, the system can achieve fiber lengths of over 20 km, supporting up to 16 channels. In this configuration, a single device can connect to a total fiber length of around 320 km, with approximately 320,000 temperature sensors and a spatial resolution of ±1 meter. The noise level is controlled within ±0.5°C.

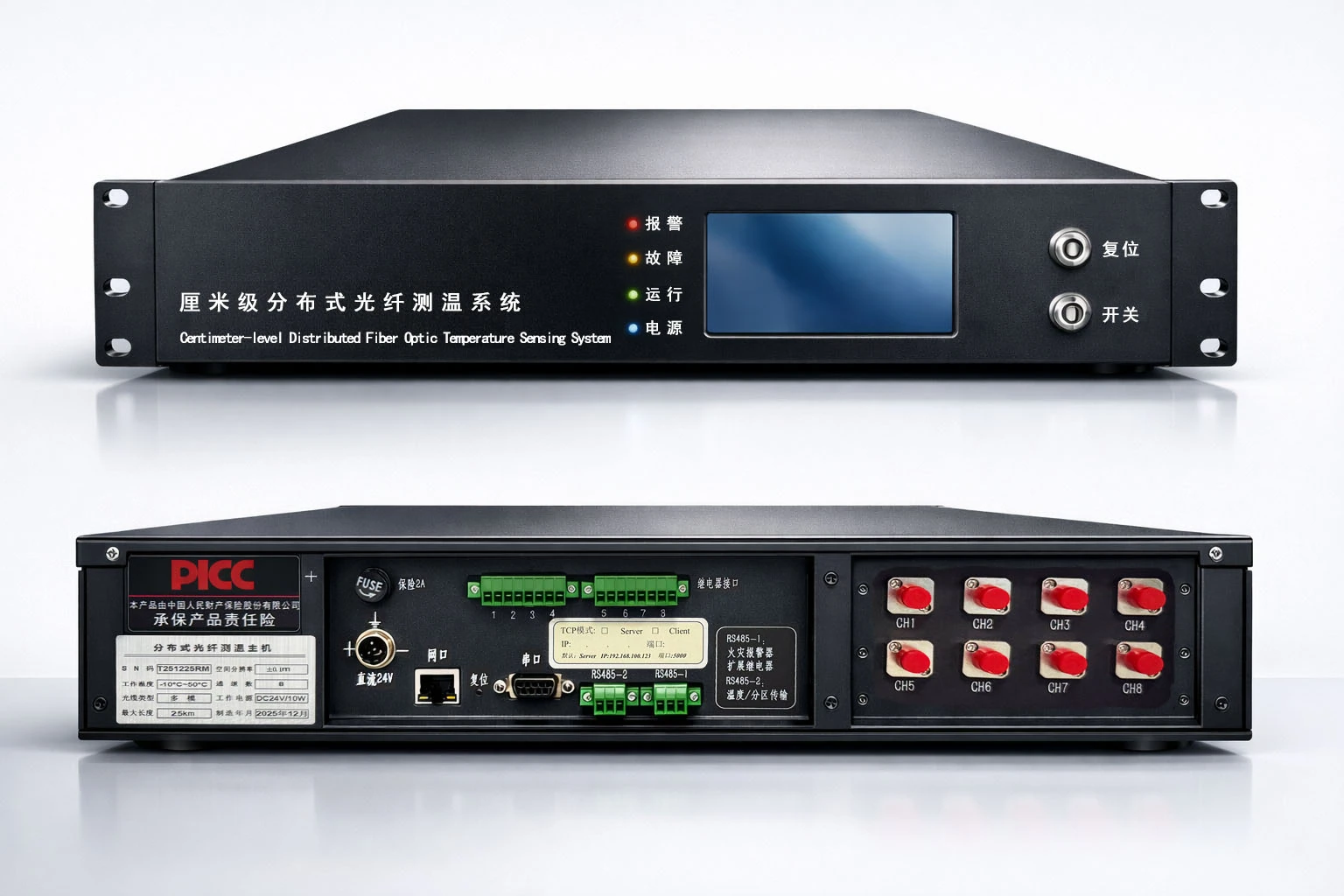

The BLY-FT100 model, independently developed by Bridging Technology, is a complete set of equipment that can be connected to optical cables with a maximum length of 50 km. It supports up to 16 channels and achieves a positioning accuracy of ±0.05 meters (5 centimeters), a temperature accuracy of ±0.05°C (measured), and a measurement time of less than 3 seconds. With a 50 km optical cable connected, the main unit of the equipment can handle real-time data from over 1 million distributed temperature sensors with positioning capabilities. Each fiber optic sensor at 0.05 meters (5 centimeters) has its own position coordinates, allowing for the real-time acquisition of temperature values as well as the location of each sensor.


This system has a wide range of applications, including leak location and early warning in oil pipelines, heat location and early warning in power cables, safety location and early warning in coal mines, fire location and early warning in firefighting, and safety location and early warning in new energy systems, among others.

Basic Information:

Brillouine Centimeter-level Distributed Fiber Optic Temperature Sensing System (a new generation innovative host that can transform a 50km multimode optical cable into a distributed fiber optic temperature sensing system with centimeter-level positioning capabilities for over 1 million sensors).


In traditional Raman optical time-domain demodulation, the spatial resolution at the meter level has reached its limit, with no further improvements or breakthroughs possible in terms of sampling rate, signal bandwidth, or narrow pulse precision. Bridging Technology combines the technology of scattered light pulse coding with hardware decoupling using NPU neural networks, resulting in a new generation centimeter-level distributed fiber optic temperature sensing system. This system has significant implications in the field of fiber optic sensing.


The BLY-FT100 model, independently developed by the company, is a complete set of equipment that can be connected to optical cables with a maximum length of 50km. It supports up to 16 channels and achieves a positioning accuracy of ±0.05 meters (5 centimeters), with a minimum temperature sensing unit of ±0.05 meters and a temperature accuracy of ±0.05°C (measured). The measurement time is less than 3 seconds. With a 50km optical cable connected, the main unit of the equipment can handle real-time data from over 1 million distributed temperature sensors with positioning capabilities. Each fiber optic sensor at 0.05 meters (5 centimeters) has its own position coordinates, allowing for the real-time acquisition of temperature values as well as the location of each sensor.


This system has a wide range of applications, including leak location and early warning in oil pipelines, heat location and early warning in power cables, safety location and early warning in coal mines, fire location and early warning in firefighting, and safety location and early warning in new energy systems, among others.


Product Applications:

Widely used in the following areas:Oil and gas pipeline leak localization and early warningPower cable overheating localization and early warningCoal mine safety localization and early warningFire detection and localizationNew energy safety localization and early warning.

1. Distributed optical fiber online safety monitoring for oil and gas pipelines and thermal pipelines.

2. Distributed optical fiber temperature online safety monitoring for power cables.

3. Distributed optical fiber temperature online safety monitoring for intelligent buildings.

4. Distributed optical fiber temperature fire safety monitoring for data centers.

5. Distributed optical fiber temperature and acoustic vibration safety monitoring for comprehensive utility tunnels.

6. Distributed optical fiber temperature and acoustic vibration safety monitoring for smart power plants.

7. Distributed optical fiber temperature online safety monitoring for distribution systems.

8. Passive distributed optical fiber temperature online safety monitoring for coal mines.

9. Real-time online safety monitoring of distributed optical fiber temperature in lithium battery warehouses.

10. Distributed optical fiber temperature online monitoring for centimeter-level power busbars.

11. Real-time online safety monitoring of distributed optical fiber temperature for wind power.

12. Real-time online safety monitoring system for distributed optical fiber temperature in energy storage.

13. Passive distributed optical fiber temperature online monitoring for hazardous material warehouses.

14. Passive distributed optical fiber temperature online monitoring system for nuclear power radiation.

15. Passive distributed optical fiber temperature safety online monitoring system for oil storage tanks.

16. Distributed optical fiber temperature and acoustic vibration safety monitoring for petrochemical plants.

17. Centimeter-level distributed optical fiber temperature online early warning system for power cable erosion.

18. Passive distributed optical fiber temperature sensing system for geothermal, oil, and gas wells.

19. Distributed optical fiber temperature and vibration safety monitoring system for highway and railway tunnels.

20. Distributed optical fiber temperature online monitoring for chemical plants, steel plants, aluminum plants, pharmaceutical plants, and distilleries.
